Asked on Dec 08, 2014

Can shower stall plumbing be INSIDE the shower instead of through wall

by Cindy
We have an old cement block shower stall in the basement. Is it possible to re-plumb this and put the plumbing inside the shower instead of thru the cement block wall? It always leaks between the faucet and the outside wall and runs down inside the block wall. We have had it "fixed" (using that term very loosely) several times and have been told it leaks because of the number of connectors that are needed to reach thru the cement block. Since the tile needs re-grouted/replaced anyway, and there is about a 6" gap between top of block wall and ceiling, could plumbing be put inside the shower? Only been trying to fix this darn thing for 10 years! Thanks.

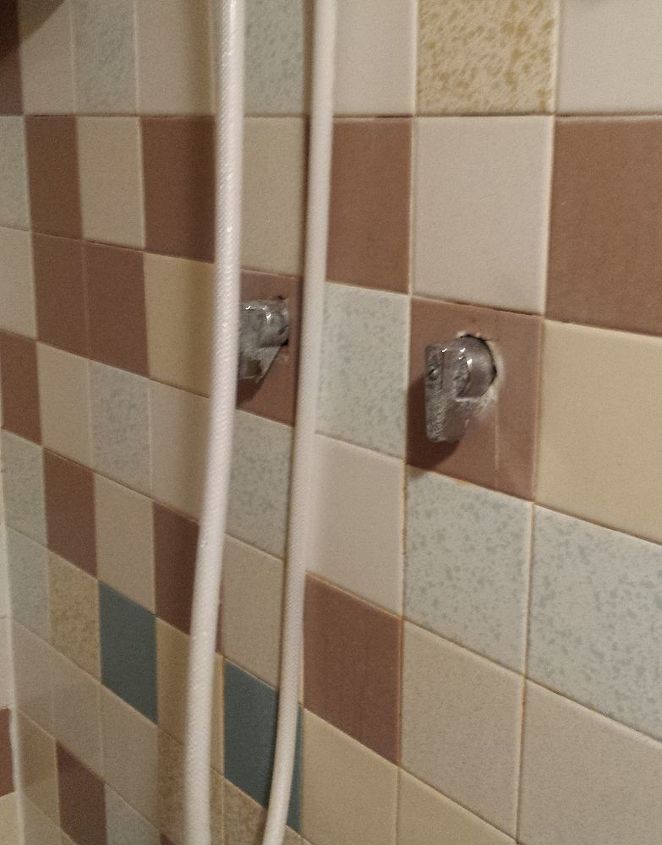

The shower knobs themselves don't leak into the shower, they leak behind the tile and in the cement block. Aren't they ugly??

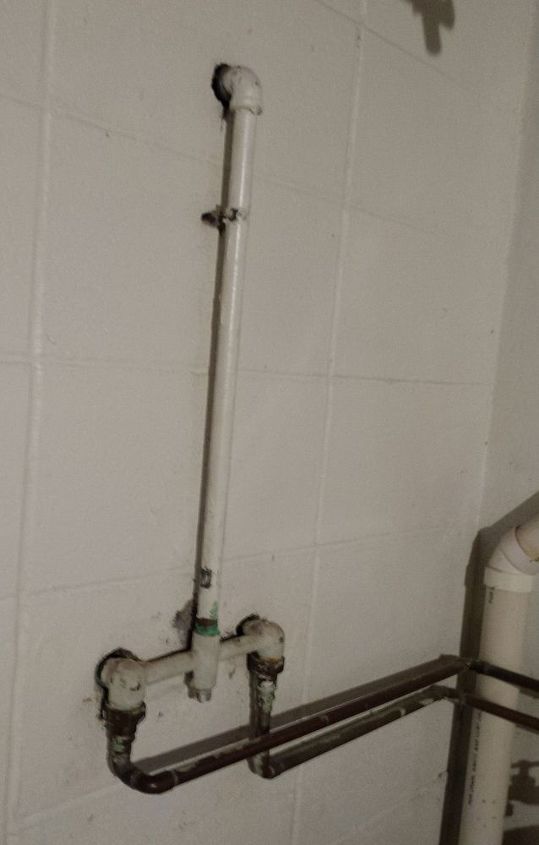

This is the plumbing on the outside of the shower wall. There is a 6" gap at top of cement wall.
  6 answers
  • Janice Goff Janice Goff on Dec 08, 2014
    I'm remodeling a strawbale home we live in...This is another idea for how to plumb the shower inside the wall. It looks a little funky but I like it amazingly well. It's really hard to get a good photo inside this cave like small shower. I am designing it to simulate a "garden tub".
    comment photo
  • Adrianne C Adrianne C on Dec 09, 2014
    Something like this would work, but it's expensive. Dad built a lot of concrete block houses and would install outside showers (Florida). He actually put the faucet inside the block wall. These handles are also missing their escutcheons too.
  • Jaxon Jaxon on Jan 06, 2015
    It's leaking because one of two things. Either it's galvanized or it wasn't done right. It doesn't matter the number of connectors. Get a reputable plumber and see if they can replumb it using ProPress. They are guaranteed not to leak.
  • Michelle Napier Michelle Napier on Mar 20, 2015
    Sounds like the plumber was lazy! You can buy a nipple in a number of different lengths so that you only have one connection or have a pipe threaded in a custom length. Running supply lines inside the shower would not give much in the way of aesthetics--better to fix the installation correctly by re-plumbing through the wall with the correct length of pipe.
  • Jo Barnier Jo Barnier on Jan 02, 2016
    I agree about the pipe nipples. Get the appropriate size to go through the wall. Put Teflon tape on all your male thread connections. Use a pipe flange inside the shower to cover up the ugly cut around the faucet handles. Good Luck. Your set-up looks like what is used for a stand alone shower.
  • R Walter R Walter on Jan 19, 2016
    It could be leaking because the threads on one of the 90's is damaged. Try replacing the top 90 on the outside with the correct length nipple, using teflon tape or pipe joint compound and that should correct the problem. You could also lengthen the control valves with longer nipples also.This is definitely a do it yourself project, if you have a couple of pipe wrenches.
