Dryer cord
How do I change my 3 prong plug to a 4 prong plug

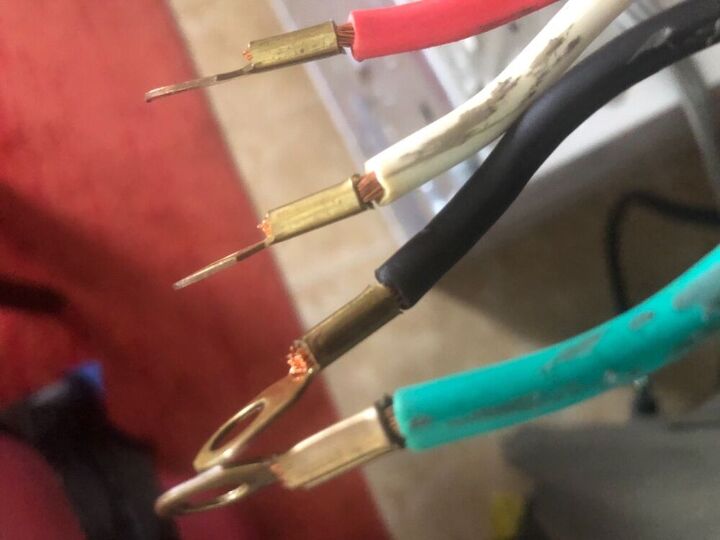

Where would the green wire go
Thank you for your help
Related Discussions
How to get rid of mice?
We seem to have some unwelcome Mickeys and Minnies in our house. What is the best way to get rid of them?
How to remove popcorn ceiling with asbestos?
I want to remove my popcorn ceiling, but it has asbestos in it. How do I go about this safely?
How to caulk baseboard gaps?
How do I fill gaps at baseboard, should I caulk? If so, does anyone know how to caulk baseboards?
How to fix squeaky hardwood floors?
How do I fix squeaky hardwood floors?
How to restore an old cast iron wood burning stove?
The story of this stove started in a small town in Mexico. It was in my mother's family and was used to cook on and heat the kitchen when she was a kid. When the home... See more
Help! I don't think my HE Kenmore washing machine is really washing!
I have read the manual, yet when I put a load in,they end up in a bundle ...especially sheets..everything is bundled inside,how can clothes get clean like this,with n... See more
Hi Renee, I have not done this but did find some information that may assist ou.
https://www.thespruce.com/change-dryer-cord-3-prong-to-4-1152248
Honestly, that sounds scary, I'd call a licensed electrician to install the right plug so you don't unintentionally start a fire.
Here's a link that should help:
https://www.hunker.com/13414213/how-to-convert-a-3-prong-dryer-outlet-to-a-4-prong
https://www.youtube.com/watch?v=TZw21L21WyE
No one metioned or stated this. Make sure your dryer is electric and not gas. Electric dryers need 240V to power the heating coils for drying and the drum motor is run by 120V. Gas dryers have a burner that is lit by an igniter using 120V and the 120V drum motor.
Hi Renee, not sure if your dryer is electric and not gas, but hope this helps you out,
https://fredsappliance.com/service/3-prong-vs-4-prong-dryer-outlets-whats-the-difference/

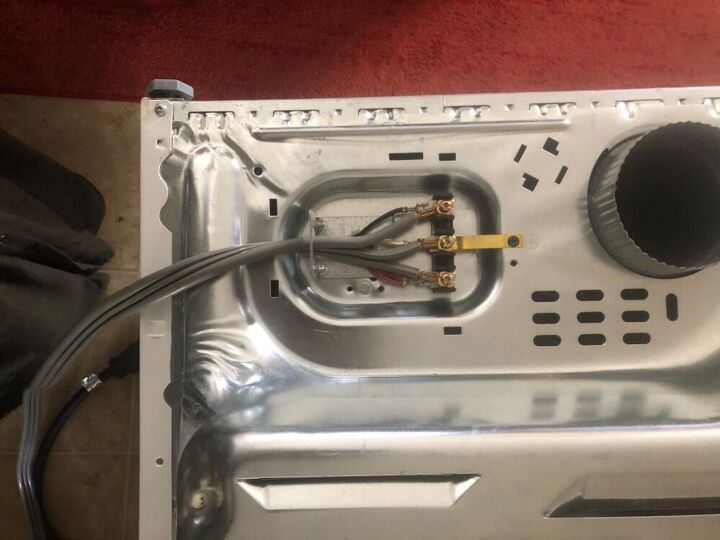

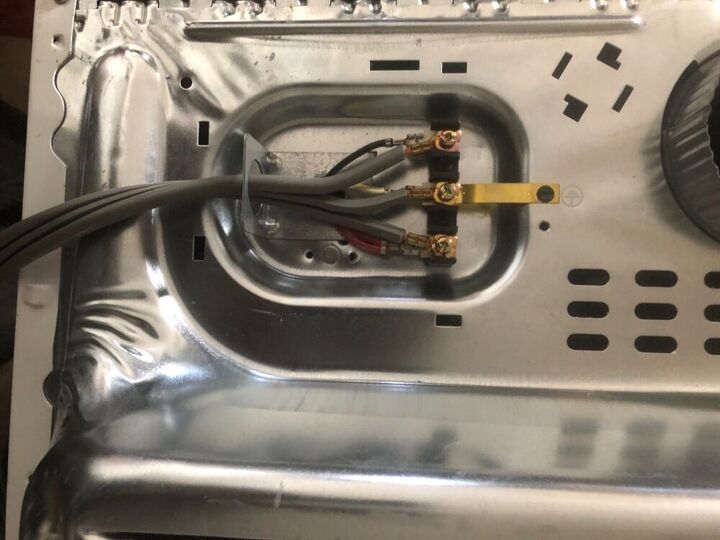

You must remove the grounding strap (the brass colored bar attached to the dryer and the wire) from the middle wire in your first picture. Your green ground wire then gets connected to the black screw where the strap was connected.
Here's a post that might help https://www.thespruce.com/change-dryer-cord-3-prong-to-4-1152248
Hi Renee, this video will show you how - https://www.youtube.com/watch?v=AVQywfPB-Mo
You can’t. The only way would be to change out the motors in the dryer. The 4-prong, 4-wire connector is made for 240-volts. You would first need a 240v breaker in the fuse panel. The wires are as follows: red-power, black-power, white-neutral, and green-ground. If you don’t have 4 lugs on the dryer you’ll have to leave it as is, or get a different dryer.
