How to Add an Electrical Outlet in Your Home, a Step-by-Step Guide

by Diywitherinb

Are you tired of struggling with limited electrical outlets in your home? Adding a new electrical outlet can be a game-changer, providing you with the convenience and accessibility you need to power your devices and appliances. However, it's essential to approach this task with caution to ensure your safety and comply with local electrical codes.

In this step-by-step guide, we'll walk you through the process of adding a new electrical outlet to your home. From planning and preparation to the final testing, we'll cover everything you need to know to successfully complete this home upgrade.

Always remember, when working with electricity, safety should be your top priority. If you encounter any challenges or uncertainties during the process, don't hesitate to seek the help of a qualified electrician.

Let's get started on improving your home's electrical infrastructure!

Tools and materials

  • New electrical outlet
  • Roman electrical cable
  • Screwdriver
  • Wire stripper
  • Wire nuts
  • Electrical tape
  • Utility knife
Selecting the location for a new outlet

1. Plan and Prepare

Before you begin, determine the ideal location for your new outlet. Choose a spot near an existing outlet for convenience and accessibility. Make sure it's in compliance with local electrical codes and regulations.

Cutting the hole for the outlet

2. Cut the Hole

Once you've selected the location, turn off the power to the existing outlet by switching off the circuit breaker or removing the appropriate fuse. This is crucial for your safety.

Use a utility knife or a drywall saw to carefully cut a hole in the wall for the new outlet. Follow the manufacturer's instructions for the dimensions of the hole.

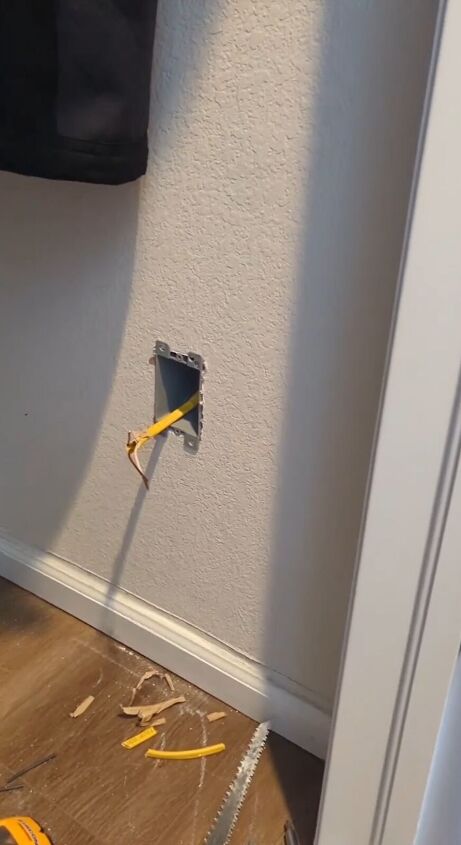

Running the Romex Cable

3. Run the Romex Cable

Take the Romex electrical cable and run it from the existing outlet to the newly cut hole. Be mindful of any obstructions in the wall that may interfere with the cable's path.

Secure the cable using staples or cable clamps to keep it in place.

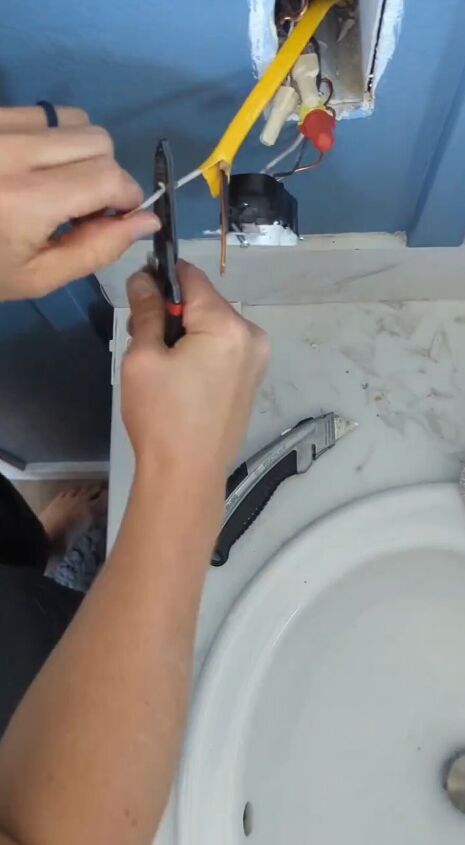

Stripping the wire

4. Strip the Wire

Once the cable is in position, strip the outer sheathing from the Romex cable at both ends using a wire stripper. Be cautious not to damage the wires inside while stripping.

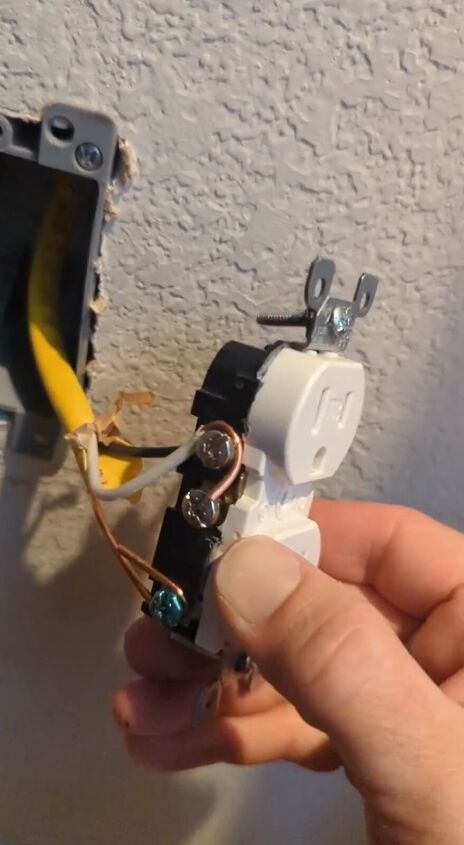

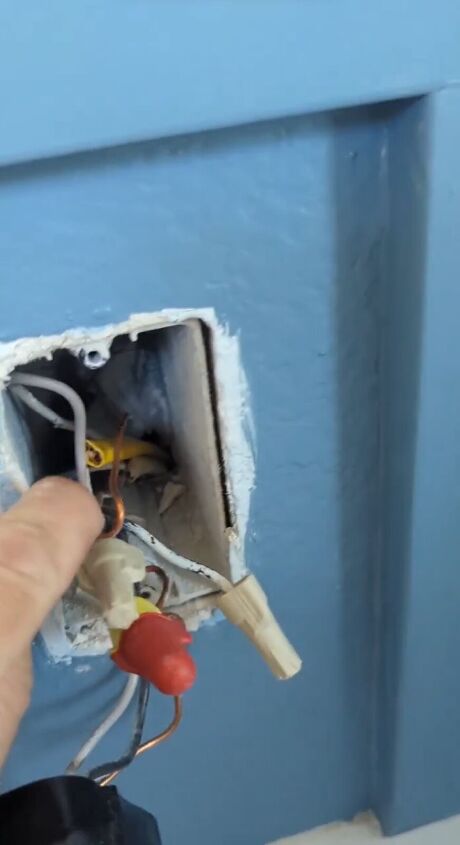

Connecting the wires

5. Connect the Wires

At the existing outlet, you should see three sets of wires: white (neutral), black (hot), and green or bare (ground). There may be more if the outlet is part of a circuit with multiple outlets.

  • Connect the white wire from the Romex cable to the silver screw terminal on the existing outlet. Use a screwdriver to tighten the connection securely.
  • Connect the black wire from the Romex cable to the gold screw terminal on the existing outlet.
  • Connect the green or bare wire from the Romex cable to the green screw terminal (ground) on the existing outlet.
Testing out the new electrical outlet

6. Test it Out

With all the connections made, double-check that everything is secure and there are no exposed wires. Turn the power back on at the circuit breaker or reinstall the fuse.

Now, it's time to test the new outlet. Plug in a device or lamp to ensure it's receiving power correctly.

How to add an electrical outlet

Congratulations! You've successfully added a new electrical outlet. Always remember to prioritize safety when working with electricity. If you're unsure about any part of the process or encounter any difficulties, don't hesitate to seek the assistance of a qualified electrician.
