Seal water heater pipes

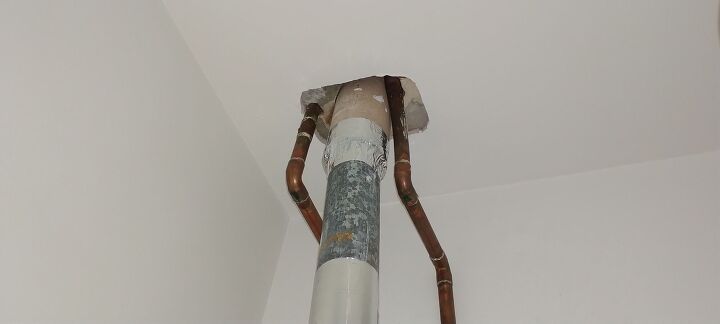

I have a gas water heater with pipes and a flue into my ceiling. The flue is concrete and water pipes are copper. I understand some folks use steel wool or fire block foam spray/caulk. I need to seal the area. Does anyone have recommendations about the best way to seal up this area?
Related Discussions
How to get rid of mice?
We seem to have some unwelcome Mickeys and Minnies in our house. What is the best way to get rid of them?
How to remove popcorn ceiling with asbestos?
I want to remove my popcorn ceiling, but it has asbestos in it. How do I go about this safely?
How to caulk baseboard gaps?
How do I fill gaps at baseboard, should I caulk? If so, does anyone know how to caulk baseboards?
How to fix squeaky hardwood floors?
How do I fix squeaky hardwood floors?
I have ruined my copper sink! Please help!
I'm hoping to save my copper sink, but I am afraid I have totally ruined it. I need some suggestions on how to save it! What can I spray it with, or where can I fin... See more
Black stuff in home water supply.
This black oily or paraffin type stuff sometimes comes through my hot water line in the second story. Have talked to the water company. They say it isn't them or th... See more
here is the info I found
https://homeguides.sfgate.com/seal-around-exterior-furnace-vents-33122.html
What are you trying to block by sealing this? If itās for heat loss it would be something foam - like the spray foam insulation. If itās for mice it would be mesh.
Looking at the picture, I would use a foam sealant.
Either steel wool or foam sealant can work. Personally, I'd use the foam sealant.
I would stuff it with steel wool for filler then add a collar of some type like a metal flange for appearance.
Zach,
You probably have some local building code that speaks to your situation. Generally speaking, you would be required to use a fire block caulk or fire block foam sealant. You could put in some copper mesh, but I don't think you really need to worry about mice in this situation. What's above your ceiling? Can you seal it from the top side as well? If so, foam from the topside down and then trim any excess with a utility knife. Because the ceiling looks like regular drywall, you can backfill with all purpose joint compound, tape, mud, and finish to match the ceiling like you would any other type of hole in drywall. It would be hard to cut a decorative flange around the different pipes.
Easiest would be using fire block foam sealant. I would first stuff aluminum foil to fill any gaps around the flue and pipes. Then use fire block expandable foam. Once it's expanded and hard trim it level with the ceiling. You can leave it or paint it. It needs to be fire block to prevent flames or smoke from migrating up through it. Kind of surprised it passed code when it was installed in the first place.
We use a foam spray sealer.
What are you trying to seal it from? I would think the spray foam might work the best, but agree with Seth in that you may want to speak with the building department in your area. They may have rules around how this needs to be done.
While I agree that spray foam is probably the easiest fix you need to check with your city to see if there are any codes in place that would dictate what you needed to do to keep things up to code.
Since they are water pipes, I would avoid the steel wool because any moisture from condensation would cause the steel wool to rust.
Check with the local codes to see what would be allowed and work best in your situation.
I would check local codes before I did anything.
I have aluminum caps on my water heater which looks just like yours. You can buy them at Home Depot or Lowes. If you cannot find one with holes to match. get a solid cap and drill holes to your dimensions
Block the lot in with lathes fitted to the wall and Hardboard, MDF or Plywood to cover.
you can wrapped them up https://www.amazon.com/Frost-King-Foil-Backed-Fiberglass/dp/B000BQSMCG/ref=sr_1_9?keywords=foam%2Bheater%2Bwraps&qid=1637852104&qsid=131-9223515-6136256&s=home-garden&sr=1-9&sres=B002G51BZU%2CB00427COLA%2CB07WCQZG5T%2CB01MY7TAWQ%2CB085DFC3YF%2CB07WJG9B5P%2CB0002YWMEG%2CB000BQSMCG%2CB00004TUCV%2CB0088AHK3E%2CB07GGFC3BR%2CB000IKOU9O%2CB08JYQCHFN%2CB003110YN8%2CB003P9W0RE%2CB000FPDJJE%2CB0756VY391%2CB00EUKHACW%2CB000DZHD0M%2CB00IS94BWS&th=1
Zach, you mentioned "I have a gas water heater and am worried that even fire block foam would be hazardous". So, you really should call the local building inspector and relay to them exactly what you said here.
There may well be specific codes to your area that you need to follow in this case. And the inspector is the person who will know. You should be able to call your town hall or city hall and they can put you in touch with the inspectors office.
